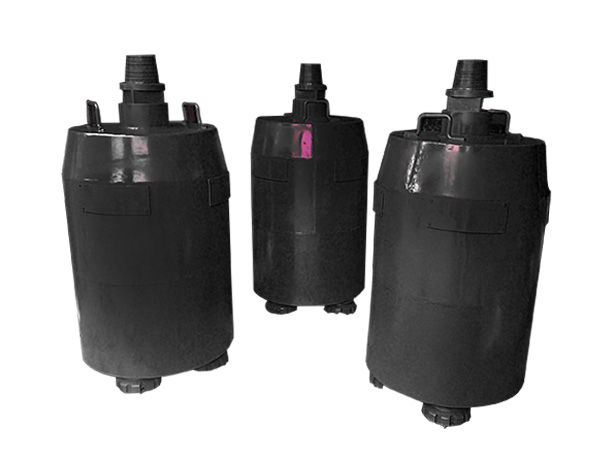

Cluster Hammer
KGR Cluster Hammer is manufactured to international specifications, from only the best quality Alloy Steel, machined to high precision and supreme standards. The product is heat- treated in the most modern, fully process controlled, in house facility. The Tungsten carbide Buttons which are used to obtained from leading and reputed indigenous and foreign manufactures.
KGR Cluster Hammer is a quality product, that confirm to international standards and strict quality control methods.
KGR products are constantly improved with adaptation of the most recent manufacturing technologies and the product features always ensure.
- Longer Product Life.
- Higher and consistent penetration rate.
- The capacity and capability to perform hitch-free at higher pressure range.
- Reduced number of parts, and compact structure for lower rate of wear&tear.
- Avoidance of Back Hammering, Hammer blocking etc.
- Minimum maintenance costs.
Model | Out side Diameter |
Combined Hammer | Combined Bit | Connection | Hole size Standard Range | Length | Weight | Air Consumption CFM (200PSI- 250PSI) |
|
mm | Tri | Circle | mm | mm | Kg | ||||
KGR Gold 17" | 397 | 4" Digger Hammer | 4T | 1C | API Threading | 430-439 | 1850 | 800 | 1500-1800 |
KGR Gold20" | 485 | 5" Digger Hammer | 4T | IC | API Threading | 508-515 | 1850 | 950 | 1600-1900 |
KGR Gold22" | 520 | 6" Digger Hammer | 4T | IC | API Threading | 558-568 | 1850 | 1050 | 1800-2000 |
KGR Gold24" | 565 | 6" Digger Hammer | 4T | IC | API Threading | 609-619 | 1950 | 1130 | 2200-2400 |
